Driving Constraints

For this i was tasked with getting the green rib like piece into the base and then putting the blue cylinder through the hole so that it matched up with the ribs in between the green piece. I then used angle constraints so that the blue piece would turn i then automated the blue peice so that it turned automatically. Then when its been turned to a certain position the red peg will pop out of its hole.

Basic Constraints

For this project i was tasked with using basic constraints to make this shape,First i mated the Square,Hexagon, and Triangle into the holes. Then mating the circles and making one of them tangent to the other.After that i was to make the squares unto the edge and flush them so that they were on the very edge on the base.

Schoolroom Constraints

The following Contains Constraints that i have done in class to test my abilities with the features in Autodesk Inventor These next few pictures are the results of my work during class with a short description of what i had to do.

I was tasked with (Will be updated)

Shell the bottom on the lunch tray so that the holes on top (Currently not visible) Would not be flat

I was tasked with turning one circle on the wheel and spreading it across the axis in the middle.

I was tasked with making holes on top of cylinders inside of the circle

I was tasked with embossing my name unto the bracelet

I was tasked with lofting a rectangle into a circle to make the following Shape

I was tasked with filleting the bottom half to make them curved and using chamfer on the top to make a clean cut.

I was tasked with extruding a line on both sides

I was tasked with doing an intersect extrustion to create the following shape

I was tasked with mirroring half of the image to create the whole image

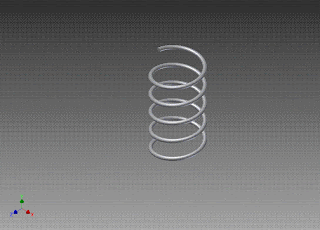

I was tasked with coiling a line to make a spring

                                           I was tasked with spreading a pattern along the path

I was tasked with extruding a line to make the following paper clip

I was tasked ribing a line into the wall of the shape

I was tasked with taper an a extrudsion to make a slanted square come out as the outcome

I was tasked with repeating a pattern of circles unto the rectangle to create the following shape

For the following constraint i was tasked with getting a picture or logo unto a water bottle to create a sort of ad or label.
